Transistor Tester Circuit

This is a very simple transistor tester circuit the circuit can be used to test NPN and PNP transistors. The
voltage source is a 6V power supply which is 230V AC to 6V step down transformer. It is essential to put
the transistor leads in right direction like transistor emitter to circuit emitter where (E) is markedtransistor
base to circuit base marked (B) and transistor collector to circuit collector marked (C). The switch S1 is a
rotary switch to choose a correct base resistor for under test transistor. The green LED will glow when an
under test NPN transistor is working correctly and red LED will glow when an under test PNP transistor is
working correctly.


USB Powered LED Night Lamp Circuit

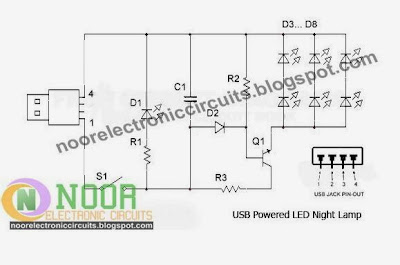

These days, we can see various USB gadgets on the market. today we try to make USB powered LED night Lamp. You can use it
as a table lamp by connecting to PC or Laptop. This circuit operates using USB port as its power source. D1 indicates connection
with USB port. The computer USB port able to provide up to 500mA current. But here, we use 100mA current for this circuit,
because it's very safely to your computer.You must be confirm accurately the pins (Positive and Ground leads) of USB port.

Components:

S1 – Switch (Can be use to turn ON/OFF lamp)

R1, R2 – 560O/0.25W

R3 – 1K/0.25W

D1 – Red mini LED

D2 – 1N4007

D3...D8 – 6 x 8mm White LEDs

C1 – 0.01f (103) Ceramic

Q1 – BC547 or BC548

Please Note:

You must be confirm accurately the positive & ground leads of USB port before build the circuit.

Check again the positive & ground leads of USB port before connect it with PC.

Don't short circuit.

Transistor Amplifiers Software

Today, we introduce  Software for the design of transistor amplifiers.Specialty of this Softare, it uses very less space and very easy to build transistor amplifiers.
